This page is part of our Bjärton information.


Bjärton Sammy

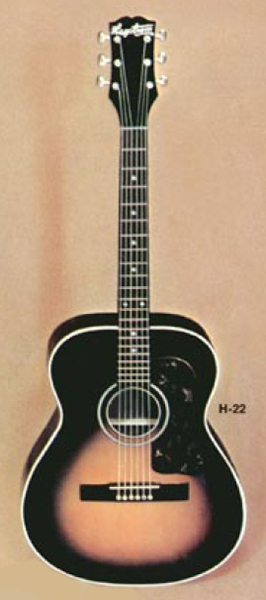

1966 catalog

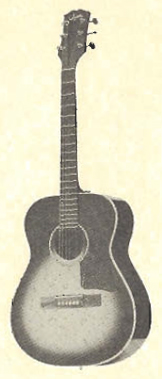

1968 catalog

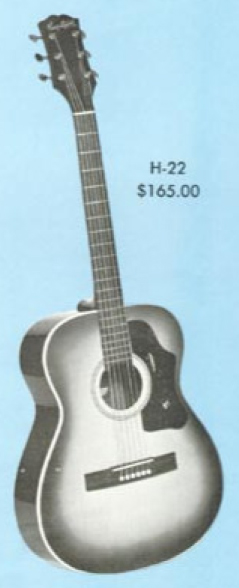

1968 catalog

Specifications:
Body width: 387 mm.
Body depth: 98 mm.
Spruce top.
Mahogany back & sides.
4-ply bound top.
Single-bound back.
14-fret mahogany neck.
Unbound rosewood fingerboard with no inlay.
Sunburst finish.
10 year warranty.

Available for export under the Hagström brand.
Marketed in the U.S.A. as Hagström H-22.

Hagström version specifications:
Maple back & sides.
Fingerboard with dot inlay.

Introduced: Circa 1965

Earliest known example: 65951 (1965) - (J-22 - early Sammy designation?)
83266 (1966)

Circa 1967:
Both versions share the same specifications.
Rounded fingerboard end.
Unbound soundhole.
Changed pickguard shape.

95213 (1968) - (changed pickguard)
Latest known example: 125762 (1972) - (Hagström)
